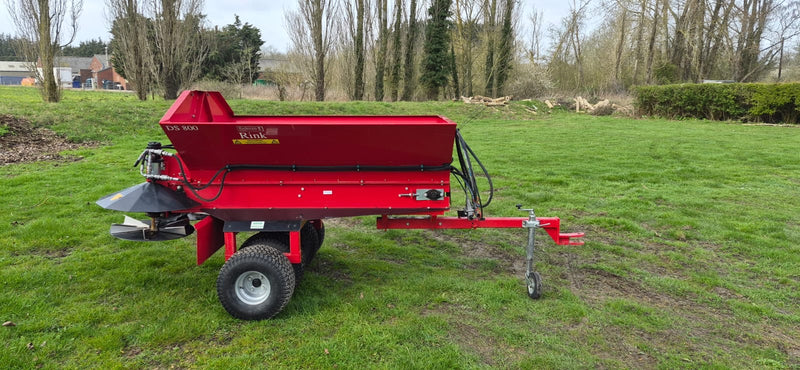

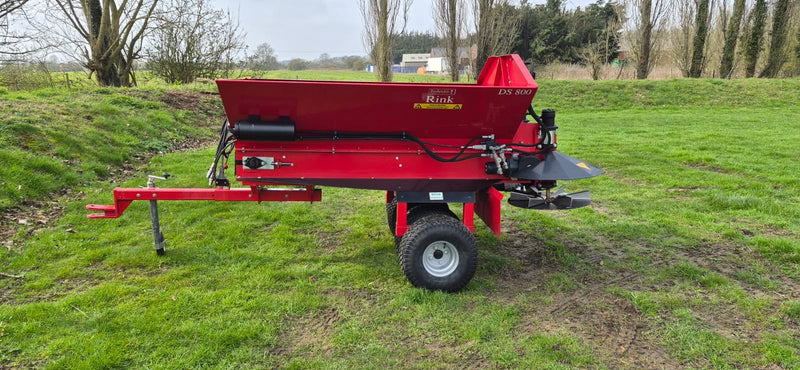

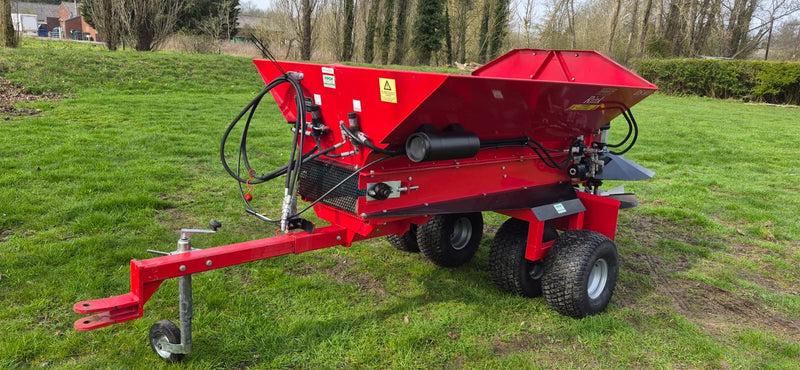

Ex-Demo Redexim DS800 Trailed Top Dresser - H1000823

Product Details & Features

This machine is currently located at our Langworth Depot

The Redexim DS800 Trailed Top Dresser is a high-performance, professional-grade topdressing machine designed for precise and efficient material application across sports turf, golf courses, and large amenity areas. This ex-demonstration model offers excellent value while maintaining the proven reliability, build quality, and performance that Redexim is known for.

Built with a trailed design for use with compact and utility tractors, the DS800 delivers consistent, wide-area coverage using an advanced twin-disc spreading system—making it ideal for maintaining high-quality turf surfaces.

Key Features

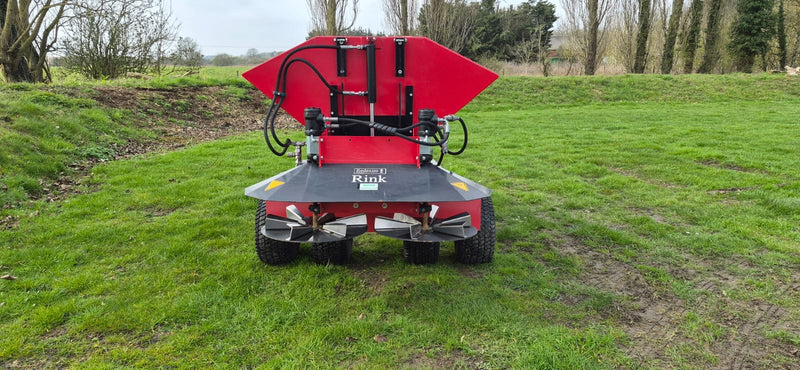

Twin Disc Spreading System

The DS800 utilises a twin-disc spreading system to deliver even and consistent distribution of materials such as sand, compost, and topdressing mixes—ensuring optimal turf conditioning and surface finish.

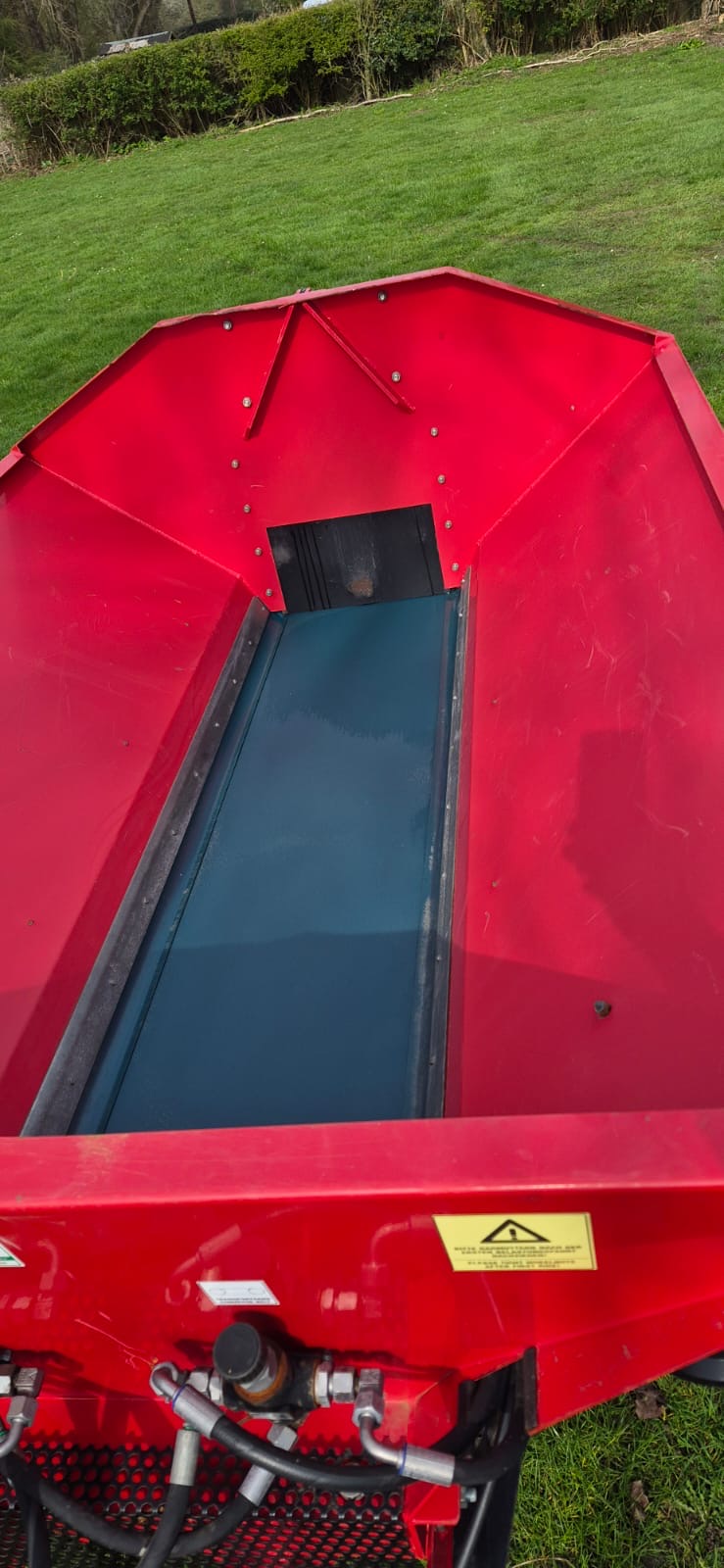

Integrated Conveyor Belt System

An internal conveyor belt efficiently transports both wet and dry materials from the hopper to the rear spreading discs, ensuring smooth and uninterrupted material flow during operation.

Wide Spreading Width & Adjustable Application

With a variable spreading width of up to approximately 12 metres and adjustable spreading thickness (0.5–15 mm), the DS800 provides excellent flexibility for both light and heavy applications.

Large Hopper Capacity

A generous hopper capacity of approximately 0.8 m³ reduces the need for frequent refilling, allowing operators to cover larger areas efficiently and minimise downtime.

Hydraulic Rear Door

The hydraulic rear door automatically closes when the machine is not in use, preventing material spillage during transport and improving overall efficiency on site.

Stable Trailed Design with Pivoting Axles

The pivoting axle system ensures excellent stability and ground-following capability, allowing the machine to operate effectively on uneven terrain while protecting turf surfaces.

Simple Hydraulic Operation

Operated via a tractor’s hydraulic system (requiring a double-acting valve), the DS800 allows the operator to control belt and spreading functions directly from the seat for ease of use and efficiency.

Ideal Applications

The Redexim DS800 Trailed Top Dresser is ideal for:

• Golf courses and greens maintenance
• Sports pitches and stadium turf
• Landscaping and amenity grass areas
• Estate and grounds maintenance
• Renovation and soil improvement programmes

Its wide working width and precision spreading make it particularly suited for medium to large-scale turf care operations.

Product Specifications

• Product Type: Trailed Top Dresser
• Model: Redexim DS800
• Condition: Ex-Demo
• Hopper Capacity: Approx. 0.8 m³
• Spreading Width: Up to 12 m
• Spreading Thickness: 0.5 – 15 mm
• Working Speed: Up to 25 km/h
• Minimum Tractor Requirement: Approx. 25 hp
• Hydraulic Requirement: 1 x double-acting valve (min. 25 L/min at 140 bar)
• Drive System: Hydraulic belt & twin disc spreaders
• Weight: Approx. 460 kg
• Material Compatibility: Sand, compost, and topdressing mixes

Why Choose the Redexim DS800 Trailed Top Dresser

The Redexim DS800 offers an excellent combination of precision, efficiency, and durability in a compact trailed design. Its wide spreading capability, adjustable application rates, and robust construction make it a trusted choice for professional turf managers.

As an ex-demo unit, this machine provides a cost-effective opportunity to invest in premium groundcare equipment while still benefiting from proven performance and reliability.

Whether you're maintaining fine turf surfaces or managing large-scale grounds, the DS800 delivers consistent, high-quality results with maximum efficiency.
