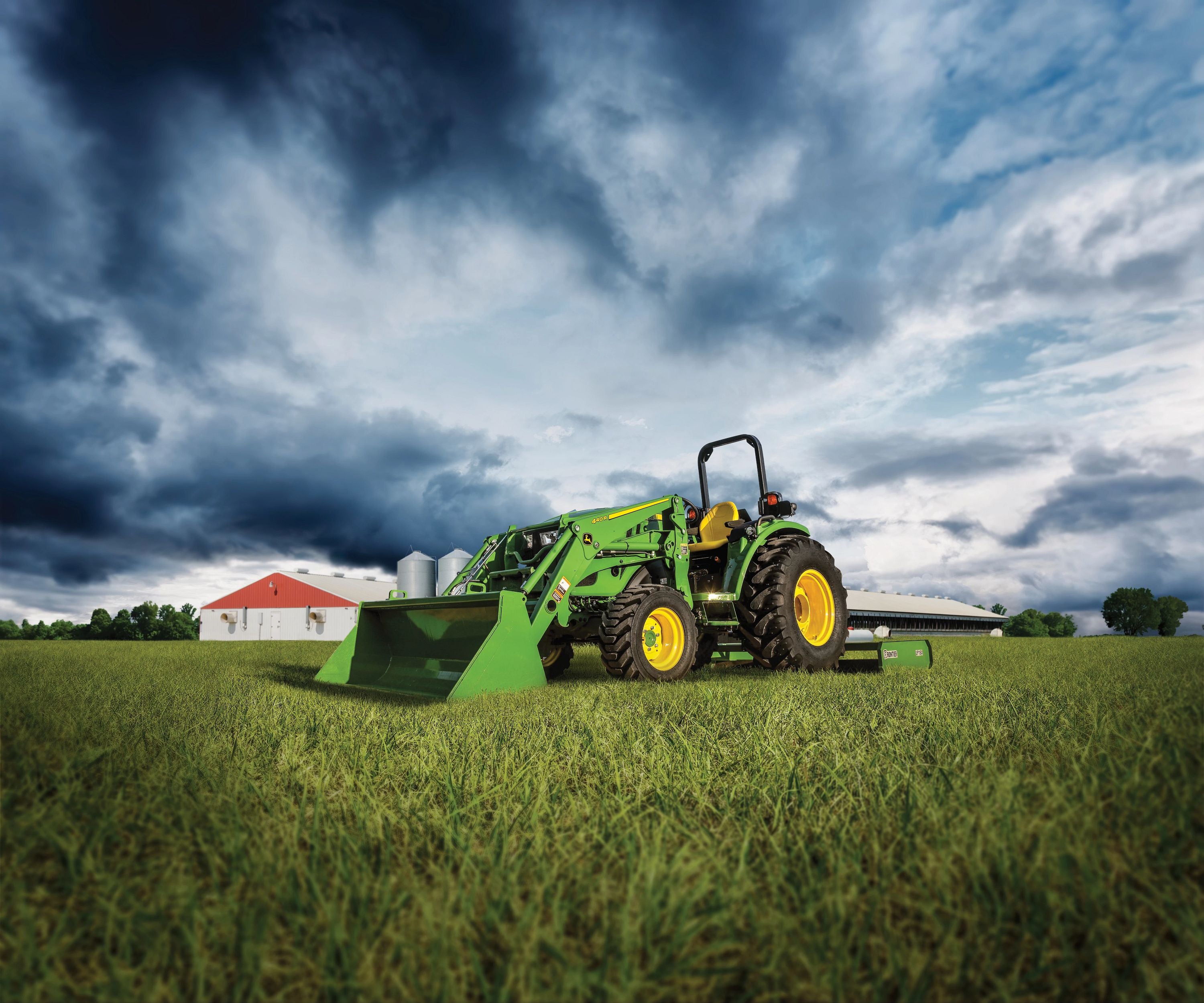

PowrReverser™
Loader work is made easy with PowrReverser™ gear transmission. Simply shift between forward and reverse by moving a lever, no clutch work required.
John Deere 4M Series Compact Utility Tractors
John Deere|4M Series - 4052M, 4066M
The John Deere 4M Series Compact Tractors feature class leading technology and incredible power for maximum for productivity. Enjoy a 4-cylinder diesel engine, eHydro™ transmission, 4WD and new intuitive controls to tackle all your jobs with ease.
Uncompromising grip and pulling power
Specify bar-tread R1 agricultural tyres
Powr Reverser™ gear transmission
Switch between forward and reverse without a clutch
1,134 kg lift capacity
At 610 mm (24 in) behind lift ends
Rear PTO
For powering a variety of implements
Product Details & Features
- Large chassis
- Rear PTO
- Optional front PTO
- Optional Fixed Front Loader
- Optional Lift Hitch
Enjoy the power and control of a large farm agricultural tractor in a compact model suited to a wide range of jobs, with the John Deere 4M Series which includes the 4052M and 4066M Compact Utility Tractors.
Featuring 4WD, eHydro™ transmission 4-cylinder diesel engine producing 50.8 hp (4052M model) and 65 hp (4066M model). Both models are fully compliant with Stage V emission standards.
The 4M Series also features new intuitive controls that give you the power to tackle all your jobs with ease.

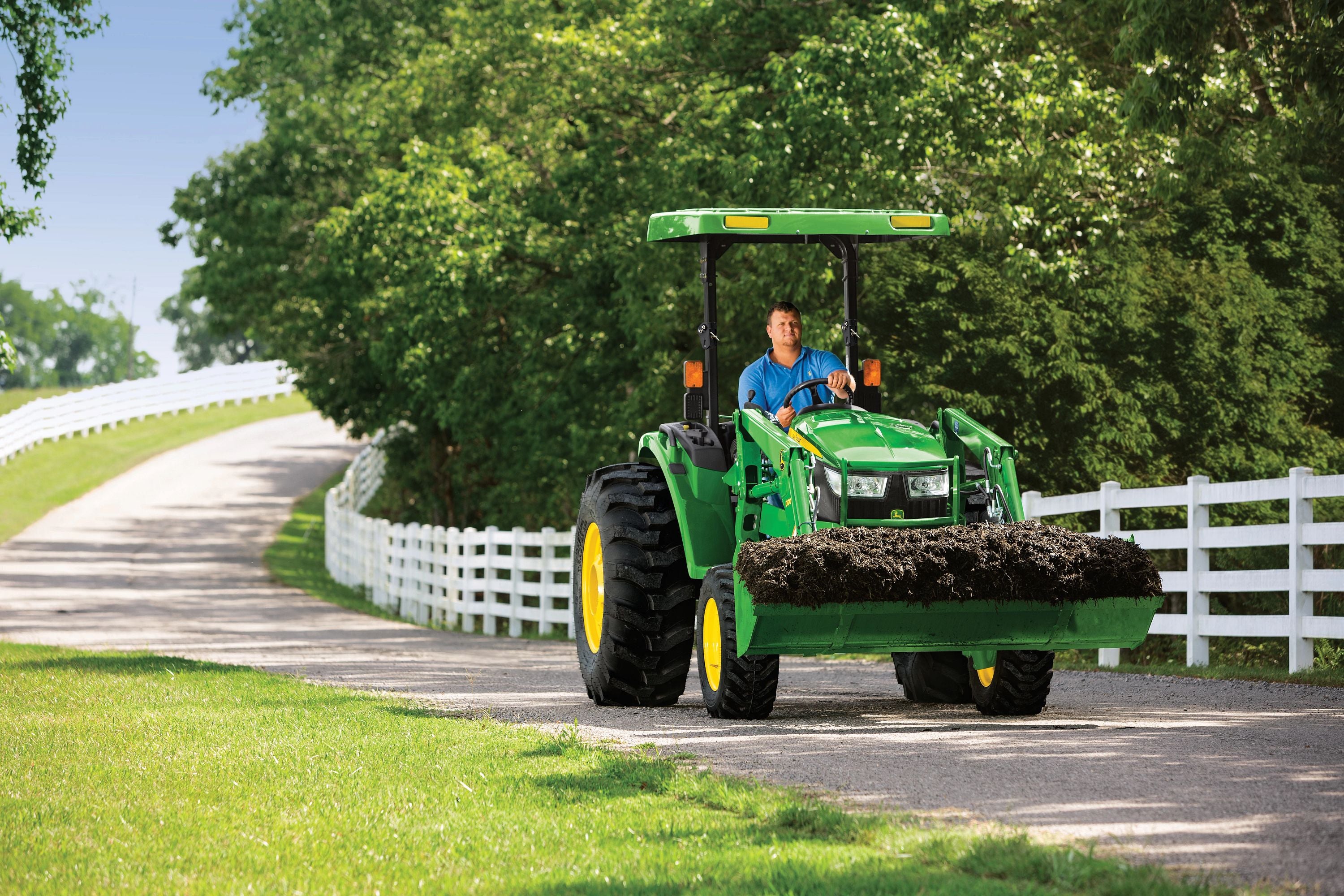

4M Series Features and Add-ons
All 4M Series models, the 4052M and 4066M, feature:
- Large chassis
- 1,134 kg lift capacity
- 2,860 kg towing capacity
- 1,710 kg weight
- Rear PTO
Optional Add-ons
- Fixed front loader
- Front lift hitch
- Wheelspacers
Product Specifications
| 4052M | 4066M | |
|---|---|---|
| Engine Type | 4-Cylinder Diesel Turbocharged | 4-Cylinder Diesel Turbocharged / Intercooler with Diesel Particulate Filter |
| Net bare engine power rate engine rpm kW (hp) | 37.9 kW (50.8 hp) at 2,600rpm | 48.5 kW (65.0 hp) at 2,600 rpm |
| Rated PTO kW (hp) | 30.5 kW (40.8 hp) | 38.7 kW (51.9 hp) |
| Transmission - Gear | 12 x 12 PowrReverser™ | Gear 12 x 12 PowrReverser™ |
| Transmission - Hydro | Two Pedal E-Hydro Transmission | Two Pedal E-Hydro Transmission |
| Lift Capacity (610 mm (24 in) Behind Lift Ends) | 1,134 | 1,134 |
| Towing Capacity (kg) | 2,860 kg | 2,860 kg |
