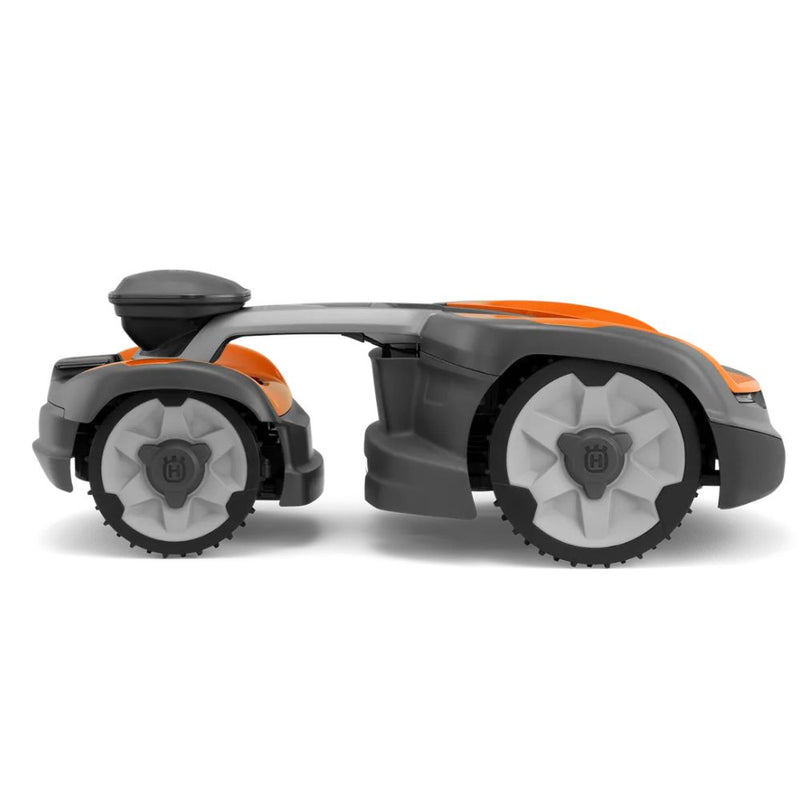

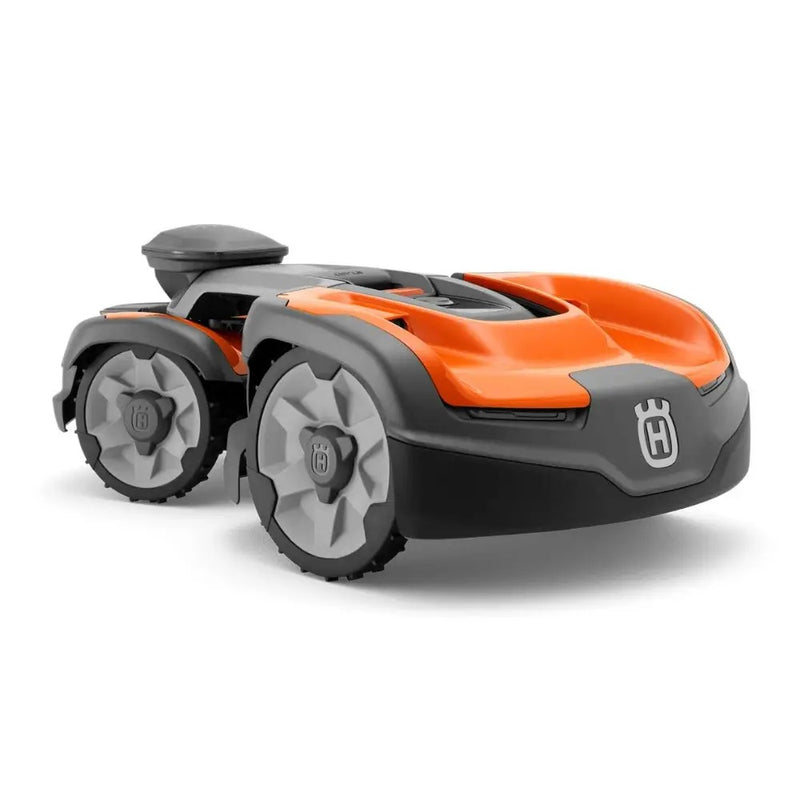

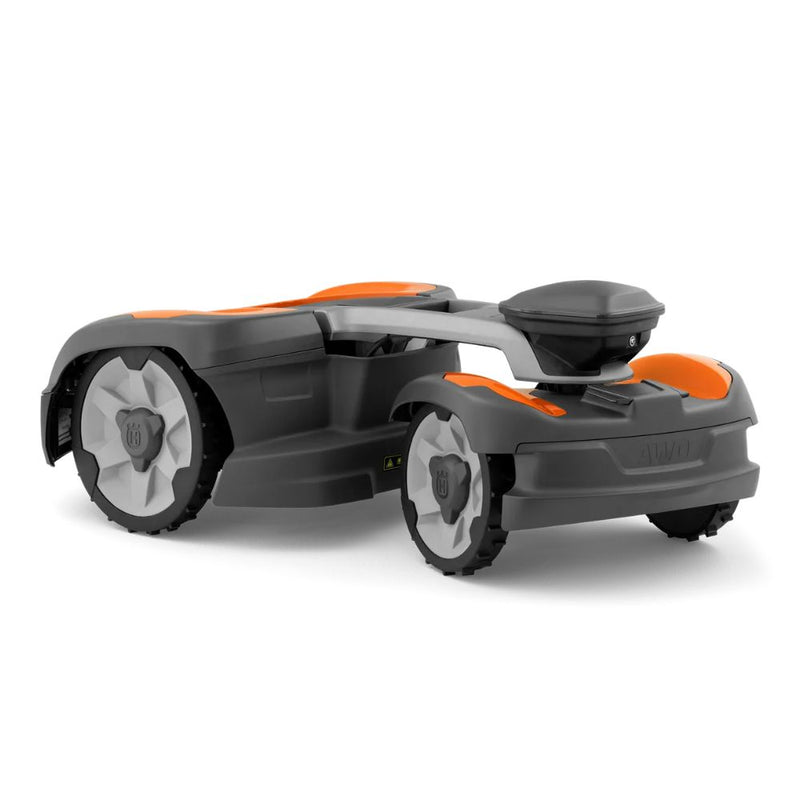

Husqvarna Automower 535 AWD

Product Details & Features

The Husqvarna Automower® 535 AWD EPOS® Robotic Lawnmower is a powerful, professional mowing solution designed to maintain challenging commercial lawns, steep slopes and complex landscaped grounds. Combining advanced satellite navigation with all-wheel drive, it delivers reliable, automated lawn maintenance across demanding terrain with minimal manual intervention.

With a working area capacity of up to 6,000 m², the 535 AWD EPOS® is ideal for professional groundskeepers, landscapers and municipal maintenance teams looking for an efficient way to maintain large green spaces. Its wire-free installation, intelligent navigation and remote fleet management capabilities provide flexibility and control across a wide range of commercial applications.

Wire-Free Installation with Husqvarna EPOS®

The Automower® 535 AWD EPOS® uses Husqvarna EPOS® satellite-based positioning technology to operate within virtual boundaries, removing the need for traditional physical perimeter wires.

Using RTK-GNSS satellite navigation, the system provides positioning accuracy of approximately 2 cm under suitable conditions. This allows you to define mowing areas, create virtual transport paths and establish temporary stay-out zones through compatible control systems.

Virtual boundaries make it easier to adapt the mowing layout when landscaping changes or certain areas need to be excluded temporarily. They also avoid the disruption that physical boundary wires can cause during activities such as aeration and turf renovation.

Please note: A compatible Husqvarna EPOS® reference station is required for operation and must be purchased separately.

All-Wheel Drive for Challenging Terrain

One of the standout features of the 535 AWD EPOS® is its all-wheel-drive system, which is designed to provide traction across uneven ground and steep slopes.

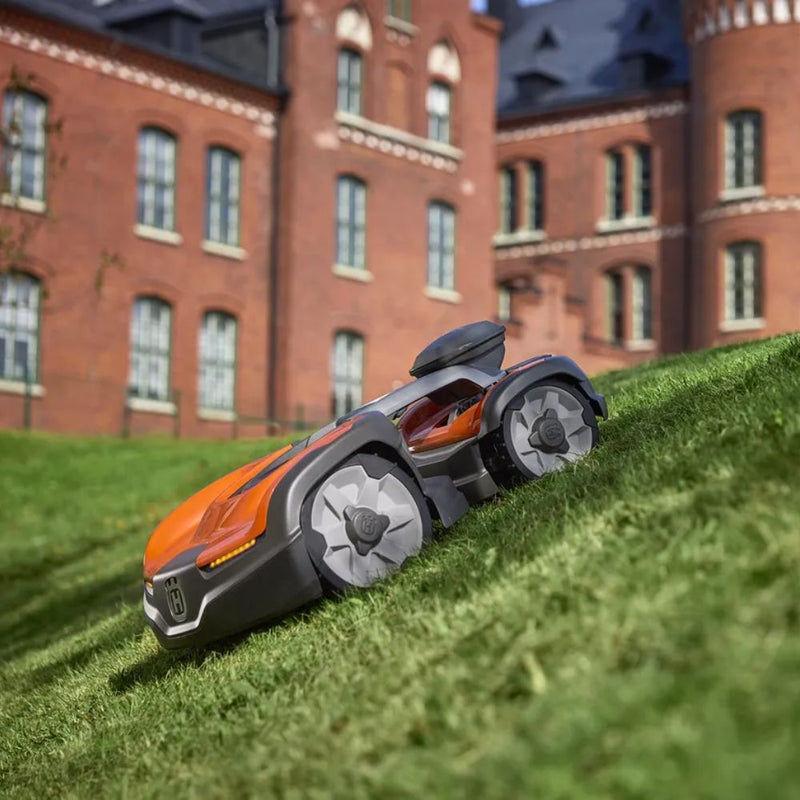

The mower can handle inclines of up to 70% within the installation area, making it particularly suitable for challenging commercial landscapes where conventional robotic mowers may struggle. Its articulated rear body improves manoeuvrability, helping the machine maintain contact with the ground as it moves across uneven terrain.

This combination of traction and flexible movement makes the 535 AWD EPOS® a practical choice for parks, municipal grounds, landscaped estates and other sites with demanding topography.

Customisable Mowing Patterns

The 535 AWD EPOS® supports systematic mowing patterns, allowing you to tailor the appearance of the lawn to suit the site.

Depending on the selected settings and installation, you can create patterns such as parallel lines, triangles, diamonds and checkerboard designs. Different work areas can be configured with individual mowing schedules, cutting heights and patterns to suit their requirements.

With a 22 cm cutting width and five pivoting razor blades, the mower provides consistent cutting performance while maintaining professional standards across large areas.

Smart Control and Fleet Management

The Automower® 535 AWD EPOS® integrates with Husqvarna Fleet Services™, allowing professional users to monitor and manage their mower remotely through compatible devices.

You can manage mowing schedules, configure work areas, check operating status and access GPS-based location information. Bluetooth® and cellular connectivity provide convenient access to supported features, while over-the-air firmware updates allow compatible software improvements to be installed remotely.

These capabilities are particularly valuable for businesses managing multiple machines or maintaining several commercial sites.

Intelligent Navigation and Object Detection

The 535 AWD EPOS® features ultrasonic object detection, helping the mower identify obstacles and respond by slowing down or changing direction where appropriate.

Its virtual transport paths help guide the mower between designated work areas and the charging station, reducing the need for manual intervention. GPS-assisted positioning also helps it maintain systematic coverage across the installation.

Together, these features support efficient operation in busy commercial environments where reliable navigation and consistent mowing are essential.

Adjustable Cutting Height and Automatic Charging

The electric cutting-height adjustment allows the cutting height to be set between 30 and 70 mm, making it possible to tailor the finish to the needs of the site and the season.

The mower typically operates for approximately 145 minutes per charge, returning automatically to its charging station when the battery needs replenishing. A typical charging cycle takes around 45 minutes before the mower resumes its programmed schedule.

Its weather-resistant design and ability to operate in demanding outdoor conditions make it suitable for regular professional lawn maintenance throughout the growing season.

Security and Safety Features

The Automower® 535 AWD EPOS® includes a range of security features to help protect your investment, including GPS theft tracking, GeoFence, PIN-code protection, an alarm, lift sensors and tilt sensors.

The cutting system is designed to stop automatically if the mower is lifted or tips over. These features provide additional reassurance when the machine is operating unattended across commercial grounds.

With an IPX4 protection rating, the mower is also designed for outdoor operation in changing weather conditions.

Key Features

Up to 6,000 m² Working Area – Designed for professional maintenance of large commercial lawns and landscaped grounds.

Husqvarna EPOS® Technology – Satellite-based positioning with virtual boundaries for flexible, wire-free installation.

All-Wheel Drive – Provides traction and manoeuvrability across challenging terrain.

70% Slope Capability – Handles steep inclines within the installation area.

Articulated Rear Body – Improves manoeuvrability across uneven ground.

Customisable Mowing Patterns – Create systematic patterns to achieve a professional finish.

22 cm Cutting Width – Five pivoting razor blades deliver consistent cutting performance.

Electric Cutting-Height Adjustment – Adjust the cutting height between 30 and 70 mm.

Ultrasonic Object Detection – Helps identify obstacles and reduce collisions.

Husqvarna Fleet Services™ – Monitor and manage your mower remotely.

Bluetooth® and Cellular Connectivity – Provides access to supported connected features.

Over-the-Air Firmware Updates – Install supported software updates remotely.

GPS Theft Tracking and GeoFence – Helps protect and locate the mower.

Automatic Charging – Returns to the charging station when required.

Weather-Resistant Design – IPX4-rated protection for outdoor use.

Ideal For

• Commercial lawns and landscaped estates

• Parks and municipal green spaces

• Professional grounds maintenance teams

• Landscaping and garden maintenance businesses

• Large lawns with steep slopes

• Uneven or challenging terrain

• Sites requiring multiple mowing zones

• Sports and recreational grounds with suitable installation layouts

• Businesses managing several robotic mowers

• Professional users looking to reduce manual mowing requirements

Product Details

Product Type: Professional Robotic Lawnmower
Model: Husqvarna Automower® 535 AWD EPOS®
Working Area Capacity: Up to 6,000 m²
Boundary Type: Virtual boundaries using EPOS®
Positioning Technology: Satellite-based RTK-GNSS
Cutting Width: 22 cm
Cutting Height: 30–70 mm
Cutting Height Adjustment: Electric
Maximum Slope – Within Installation Area: 70%
Maximum Slope – At Boundary: 50%
Maximum Active Time: 24 hours per day
Typical Mowing Time per Charge: 145 minutes
Typical Charging Time: 45 minutes
Sound Level: 60 dB(A)
Weight: 18.1 kg
Dimensions: 93 × 55 × 33 cm
Protection Rating: IPX4
Battery Type: Lithium-ion
Battery Capacity: 8 Ah
Cutting System: Five pivoting razor blades
Connectivity: Bluetooth® and cellular
App: Husqvarna Fleet Services™
Object Detection: Ultrasonic
Security: GPS theft tracking, GeoFence, PIN code, alarm, lift sensor and tilt sensor
Charging System: Automatic
Installation: Wire-free EPOS® installation
Required Accessory: Compatible Husqvarna EPOS® reference station, sold separately

Why Choose the Husqvarna Automower® 535 AWD EPOS®?

The Husqvarna Automower® 535 AWD EPOS® is designed for professional users who need reliable, automated lawn maintenance across large and challenging outdoor areas. Its all-wheel-drive system and ability to manage steep slopes make it particularly effective on terrain that presents difficulties for standard robotic mowers.

Combined with wire-free EPOS® installation, customisable mowing patterns and remote fleet management, it provides a flexible solution for maintaining commercial grounds with less manual effort. Automatic charging, intelligent object detection and integrated security features further support dependable day-to-day operation.

For groundskeepers, landscapers and municipal maintenance teams looking to improve productivity while maintaining a professional finish, the Husqvarna Automower® 535 AWD EPOS® offers advanced technology built for demanding conditions.
