Ex Demo Lastec XF200 - H1000689 - £8,750 (+ VAT)

Product Details & Features

Lastec XF200 (To be fitted to JD1500 series power unit / 3rd service spools req)

This machine is currently located at our Swanland depot.

Used Specification:

•  Model year: 2021

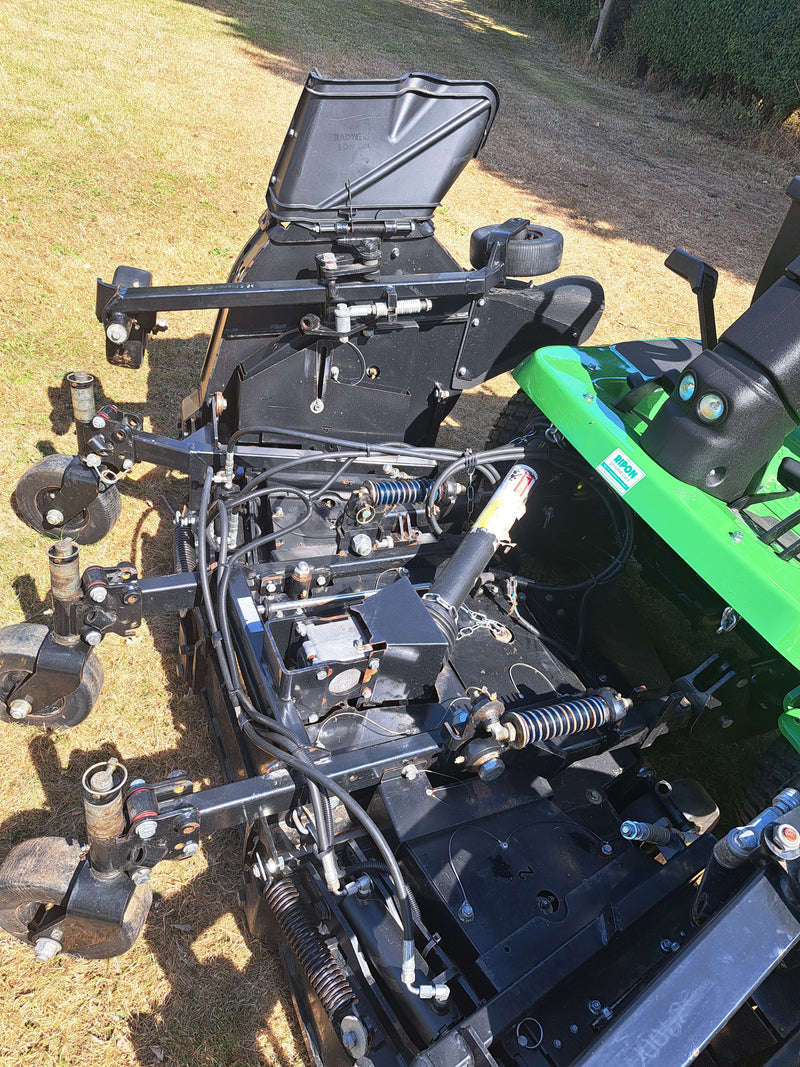

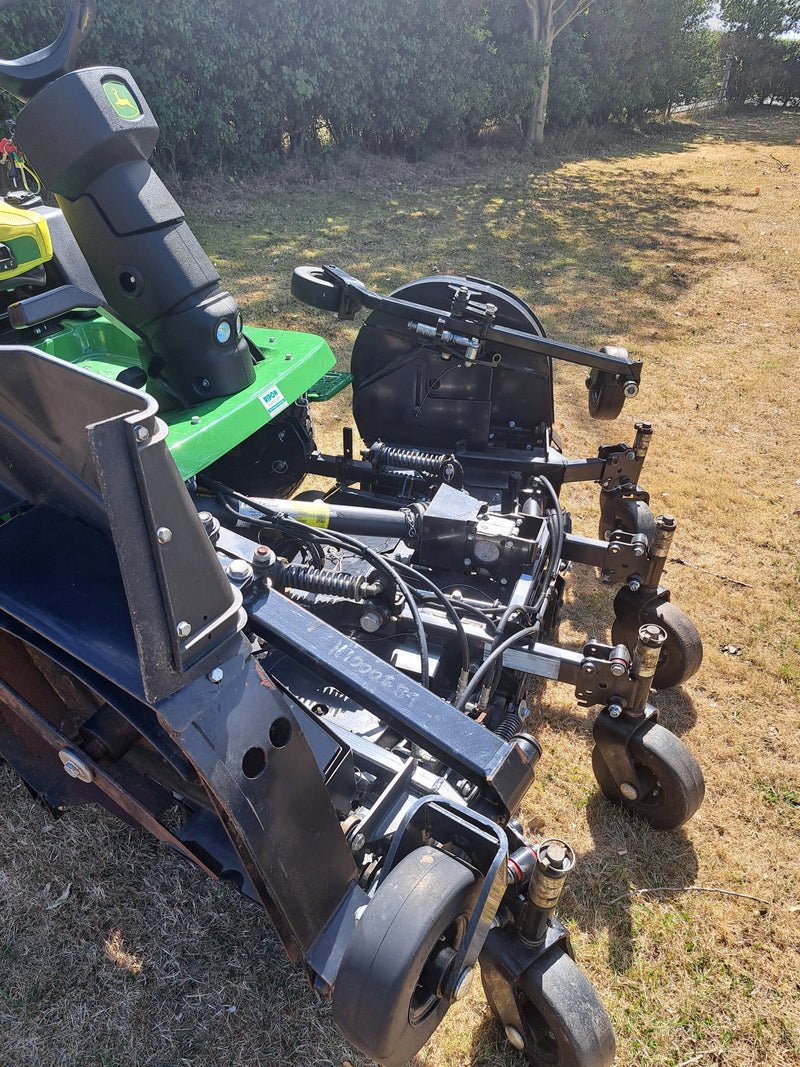

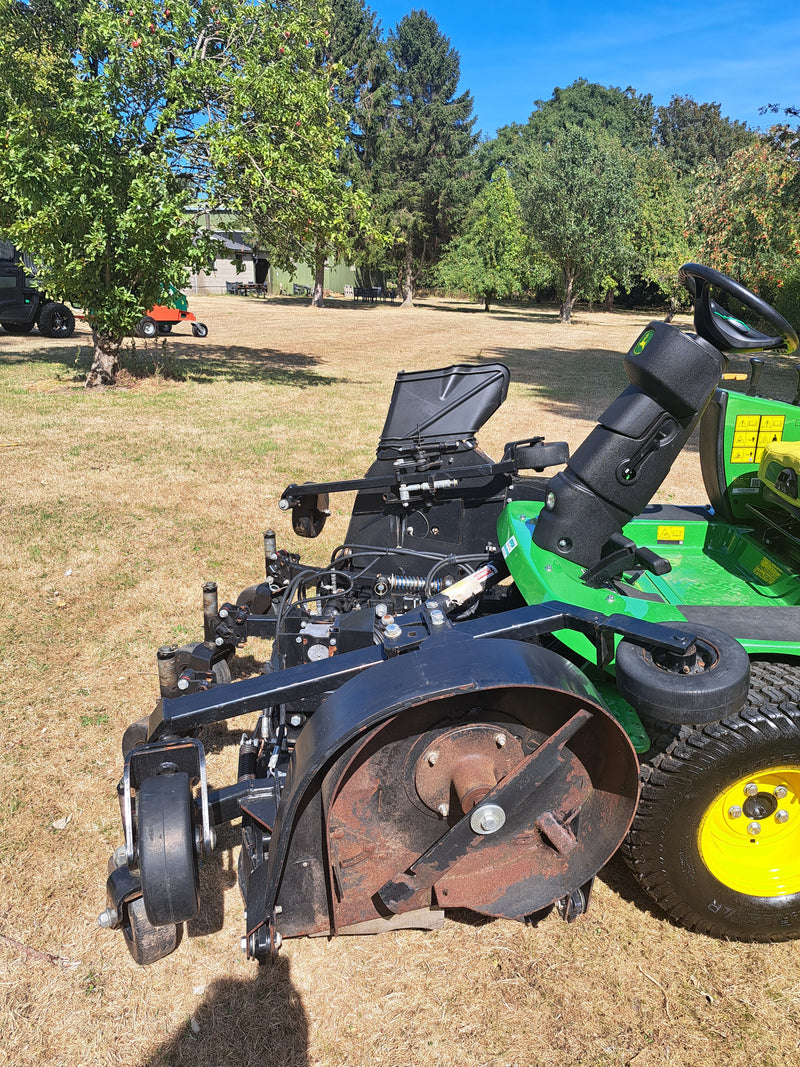

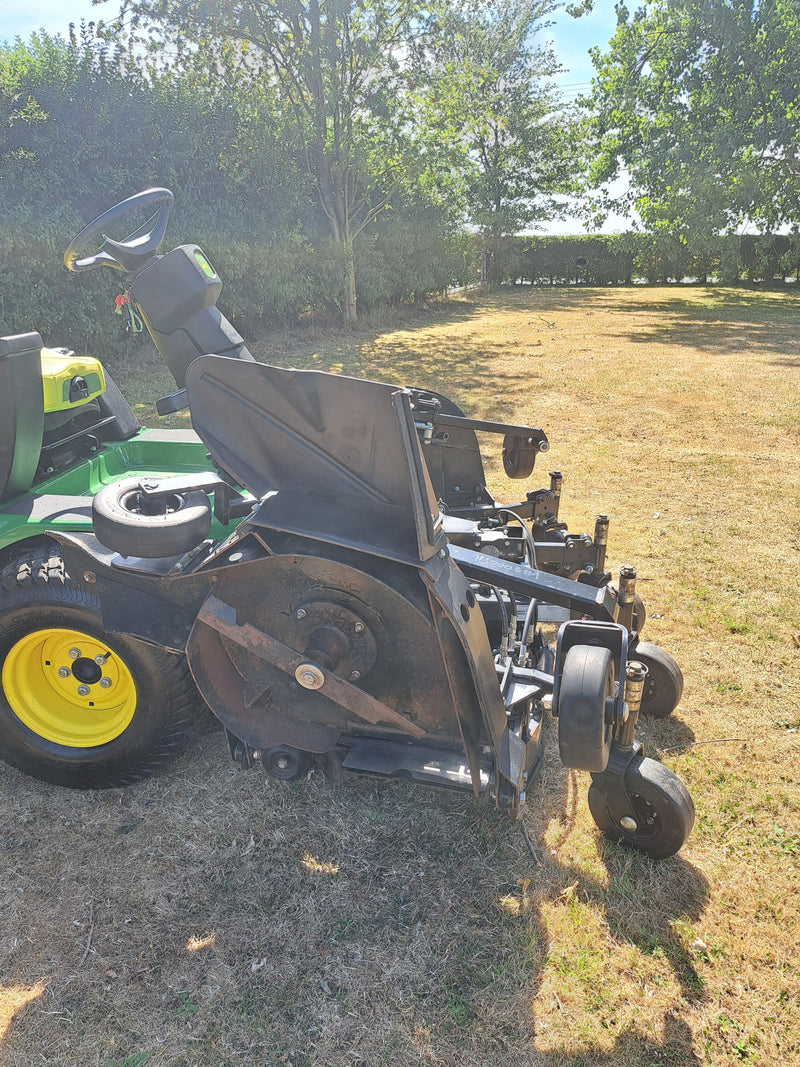

The Lastec XF200 is a professional 100" front-mounted articulating mower deck designed to deliver exceptional cut quality across challenging and undulating terrain. Engineered specifically for John Deere 1565, 1570 and 1580 traction units, the XF200 combines five independently flexing cutting decks with Lastec's proven low-maintenance belt-drive system.

Designed for professional turf maintenance, the XF200 allows each deck section to follow the contours of the ground independently, helping to minimise scalping while maintaining a consistent finish across the full 100" cutting width. This makes it particularly well suited to golf course roughs, parks, sports grounds, estates and other large-area turf applications.

Key Features

100" Wide Cutting Platform

The XF200 provides a substantial 100" (254 cm) cutting width, allowing operators to cover large areas efficiently while maintaining excellent cutting performance.

Five Independently Flexing Decks

Five 21" cutting decks articulate independently, allowing the mower to closely follow rolling terrain, slopes, valleys and other challenging contours. The deck system provides up to 24° of total up-and-down movement.

Excellent Contour Following

The articulating deck design allows the XF200 to maintain close contact with the ground, helping to reduce scalping and missed grass when mowing uneven terrain.

Low-Maintenance Belt Drive

Lastec's patented belt-driven cutting system provides a straightforward and durable method of powering the decks while reducing maintenance requirements compared with hydraulically driven cutting systems.

Hydraulic Transport Lift

The deck can be hydraulically raised for transport, cleaning and storage. When raised, the deck reduces to approximately 78" wide, making movement between mowing areas considerably easier.

Easy Height-of-Cut Adjustment

The XF200 features tool-free height-of-cut adjustment from approximately 1½" to 4¾" (38–121 mm), allowing operators to quickly adapt the machine to different turf conditions.

Heavy-Duty Construction

The five decks are constructed from heavy-gauge steel with reinforced leading edges, providing the durability required for demanding professional mowing operations.

Semi-Solid Deck Wheels

The deck is equipped with semi-solid gauge wheels designed to eliminate flat tyres, helping to reduce downtime and maintenance requirements.

Product Specifications

Product Type: Front-Mounted Articulating Rotary Mower Deck
Model: Lastec XF200
Condition: Ex-Demo
Cutting Width: 100" (254 cm)
Cutting Units: 5 x 21" independently articulating decks
Deck Movement: Up to 24° total up/down articulation
Height of Cut: 1½–4¾" (38–121 mm)
Deck Drive: Belt-driven
Transport Width: Approx. 78" (198 cm)
Transport Lift: Hydraulic
Deck Wheels: Semi-solid
Weight: Approx. 1,065 lb (483 kg)
Compatible Tractors: John Deere 1565, 1570 and 1580
Applications: Golf courses, parks, sports grounds, estates and professional grounds maintenance

The Lastec XF200 is an excellent choice for professional operators looking to maximise productivity without compromising cut quality on undulating terrain. With its 100" cutting width, independently articulating decks and robust low-maintenance design, this ex-demo unit offers an effective solution for large-area turf maintenance when paired with a compatible John Deere traction unit.
