Read the product description and technical specifications to find out if John Deere Rivet - HXE169294 is suitable or will fit your machine. If you're unsure, please call us on 01482 636210.

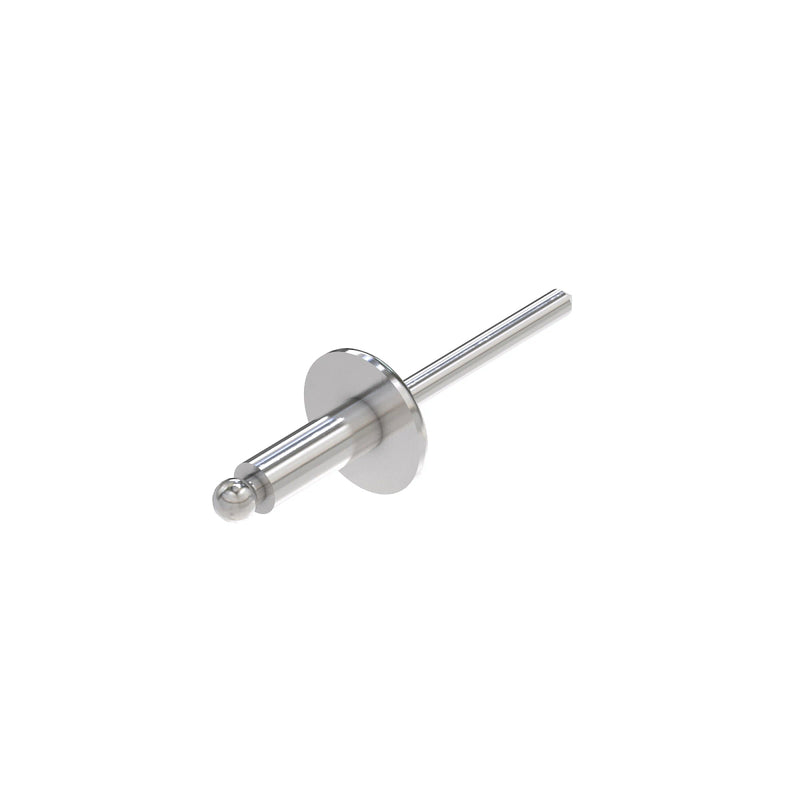

John Deere Rivet - HXE169294
Your price
£1.01
RRP
John Deere
|
HXE169294
In Stock
In Stock
Available to Order
Out of Stock
Product Details & Features
Technical specification documentation for John Deere HXE169294 Dome Head Blind Rivet.
Key Features
- Dome Head Blind Rivet design enabling fastening from one side, ideal for assemblies with limited access.
- High-Strength fastening suitable for securing panels, guards, and structural components in demanding equipment.
- Stainless steel body and mandrel provide excellent corrosion resistance and long service life in outdoor environments.
- Large dome head (16.64 mm) distributes clamping load to improve fastening stability across surfaces.
- Reliable stainless steel mandrel system ensures consistent installation and dependable clamping performance.
- OEM precision component manufactured to John Deere specifications for correct fit and reliable performance.
- Dimensions: Length 24 mm (0.94 in), Head Diameter 16.64 mm (0.66 in), Mandrel Diameter 3.66 mm (0.14 in).
- Application-focused design for securing machine panels and structural assemblies in John Deere harvesting equipment.
Product Details
- Product Type: Dome Head Blind Rivet
- Brand: John Deere
- Part Number: HXE169294
- Material: Stainless steel body and mandrel
- Length: 24 mm (0.94 in)
- Head Diameter: 16.64 mm (0.66 in)
- Mandrel Diameter: 3.66 mm (0.14 in)
- Weight: Approx. 0.005 kg
- Application: Blind rivet designed to provide secure fastening for machine panels and structural assemblies
Compatibility
- Used across John Deere harvesting equipment and headers, including:
- Combine Harvesters: 8100, 8200, 8300, 8400, 8500, 8600, 9500, 9600, 9700, STS series (STS97, STS70, STS70), S-series combines (S660, S670, S680, S685, S690, S760, S770, S780, S785, S790), T-series combines (T550, T560, T660, T670), W-series combines (W540, W550, W650, W660)
- Draper & Flex Headers: 630FD, 635FD, 640FD, 645FD, 730FD, 735FD, 740FD, 745FD, HD Series Headers (HD35F, HD35R, HD35X, HD40F, HD40R, HD40X, HD45F, HD45R, HD45X, HD50F, HD50R)
- Compatibility may vary depending on machine configuration, header type, and serial number. Always confirm with your equipment’s parts catalogue before ordering.
Compatible Equipment
If you're unsure whether this part is compatible with your machine, feel free to contact us with your serial number by using this form.
- 630FD
- 635FD
- 640FD
- 645FD
- 730FD
- 735FD
- 740FD
- 745FD
- 8100
- 8200
- 8300
- 8400
- 8500
- 8600
- 9500
- 9600
- 9700
- 9770 STS
- 9800
- 9900
- HD35F
- HD35R
- HD35X
- HD40F
- HD40R
- HD40X
- HD45F
- HD45R
- HD45X
- HD50F
- HD50R
- HDF 35
- HDF 40
- HDF 45
- HDF 50
- HDR 35
- HDR 40
- HDR 45
- HDR 50
- RD30F
- RD35F
- RD40F
- RD45F
- RDF 30
- RDF 35
- RDF 40
- RDF 45
- S660
- S670
- S670 PRECISION UPGRADES
- S670H
- S680
- S680 PRECISION UPGRADES
- S680H
- S685
- S685H
- S690
- S690 PRECISION UPGRADES
- S690H
- S7 600
- S7 700
- S7 800
- S7 850
- S7 900
- S760
- S760 PRECISION UPGRADES
- S770
- S770 PRECISION UPGRADES
- S780
- S780 PRECISION UPGRADES
- S785
- S790
- S790 PRECISION UPGRADES
- T550
- T560
- T660
- T670
- W540
- W550
- W650
- W660
Product Specifications
| Weight | 0.005kg |
| Height | 1.778cm |
| Length | 6.096cm |
