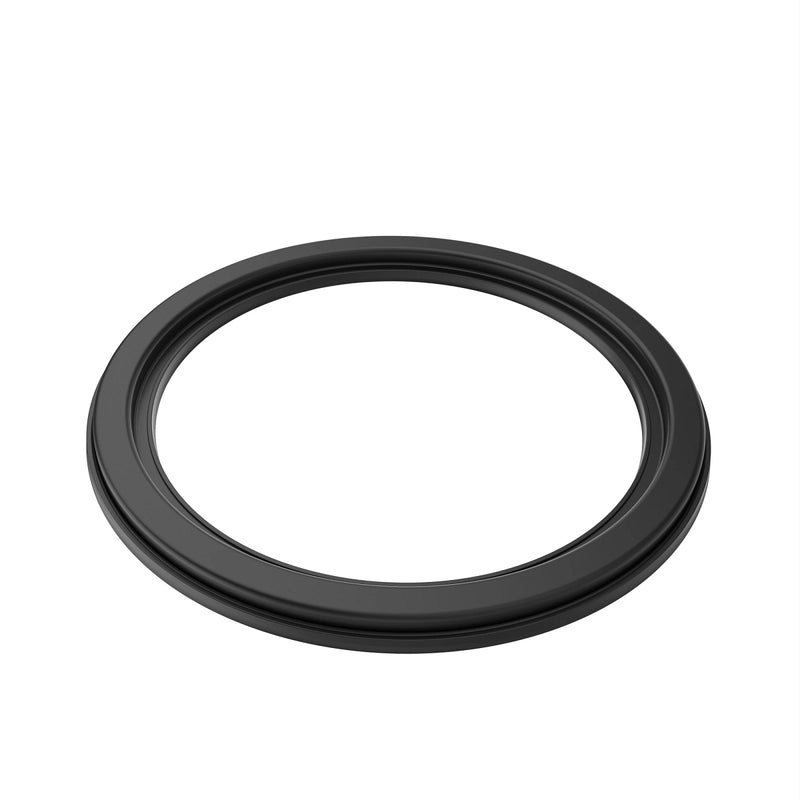

John Deere Planetary Brake Piston - R95316

John Deere Planetary Brake Piston — Part Number R95316. Technical specification and installation guidance for replacement within planetary brake assemblies.

Overview

• Manufacturer: John Deere
• Product: Planetary Brake Piston
• Part Number: R95316
• Purpose: OEM replacement piston for planetary brake assemblies in John Deere drivetrain systems; enables hydraulic actuation within planetary gear reductions to engage braking.
• Typical applications: John Deere agricultural and industrial equipment that employs planetary brake stages within transmissions or drive trains.

Key Features

• Part Number: R95316
• Type of machine suitable for: John Deere equipment with planetary brake systems (tractors, loaders, combines, and other heavy equipment utilizing planetary gear reductions).
• Installation tips:
  • Depressurize hydraulic system and drain lines before replacement.
  • Inspect brake housing bore for wear; replace seals and adaptors as needed.
  • Ensure correct piston orientation and full seating without binding; clean mating surfaces to remove debris.
  • Follow John Deere service documentation for seating depth and inspection intervals; use OEM replacement guidelines.

Compatibility

• Suitable machine models: John Deere equipment that specifies the planetary brake piston with part number R95316 in its service parts catalog.
• Alternative part numbers: No alternate part numbers documented for this piston at this time.
