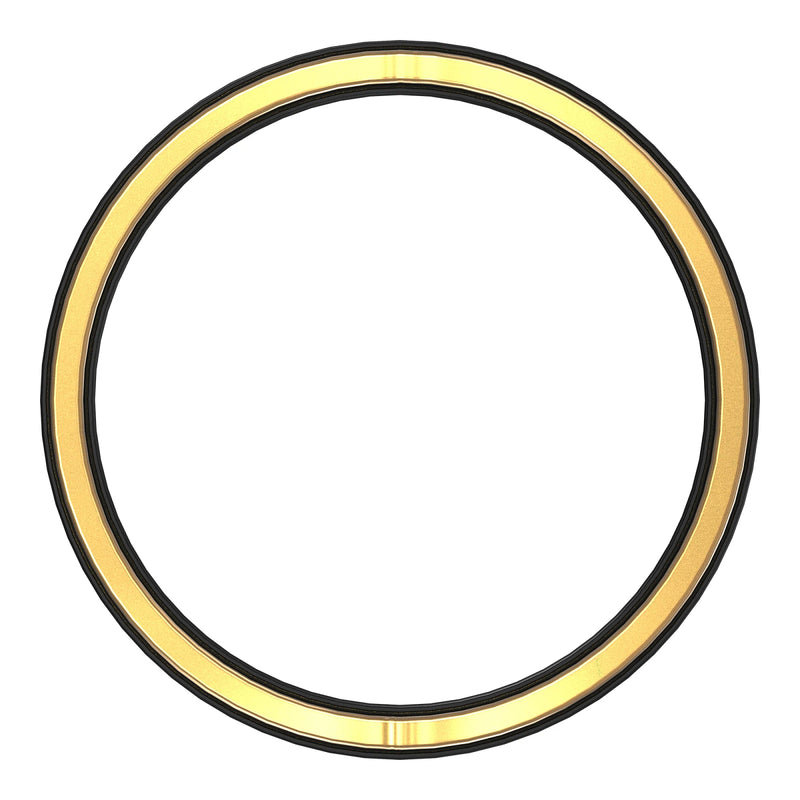

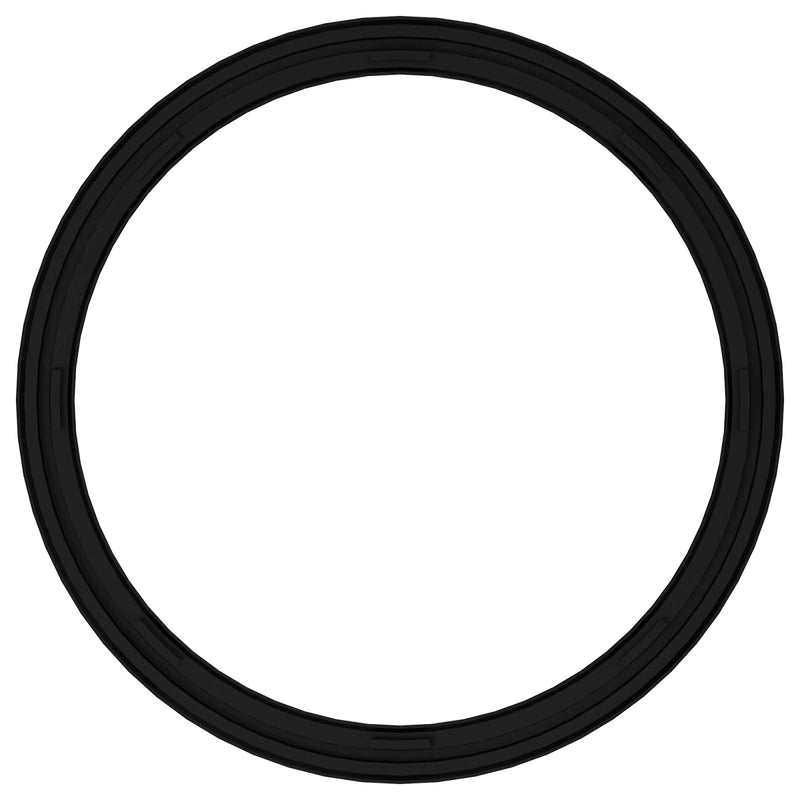

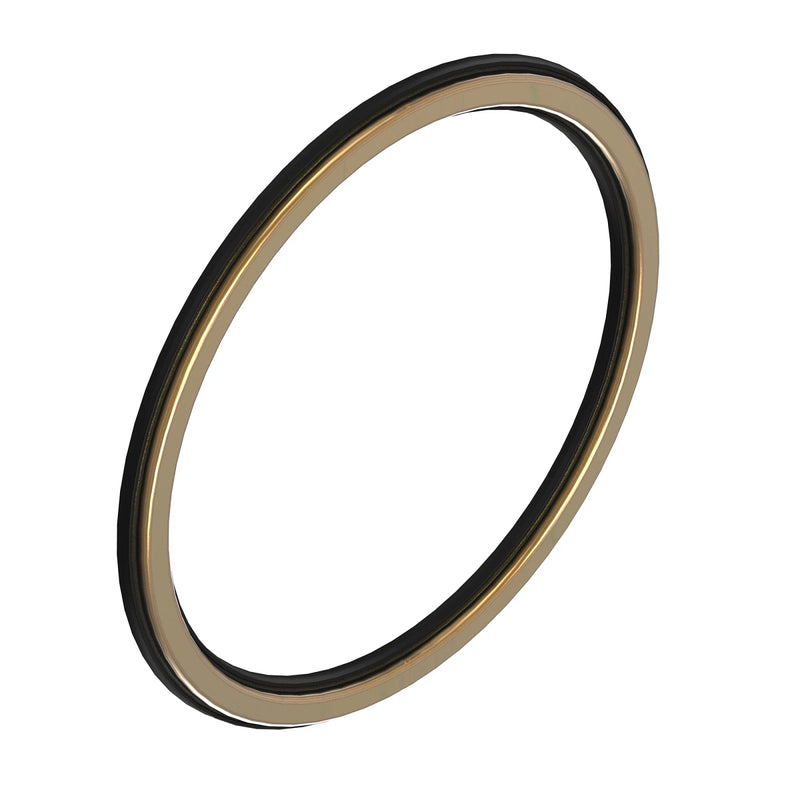

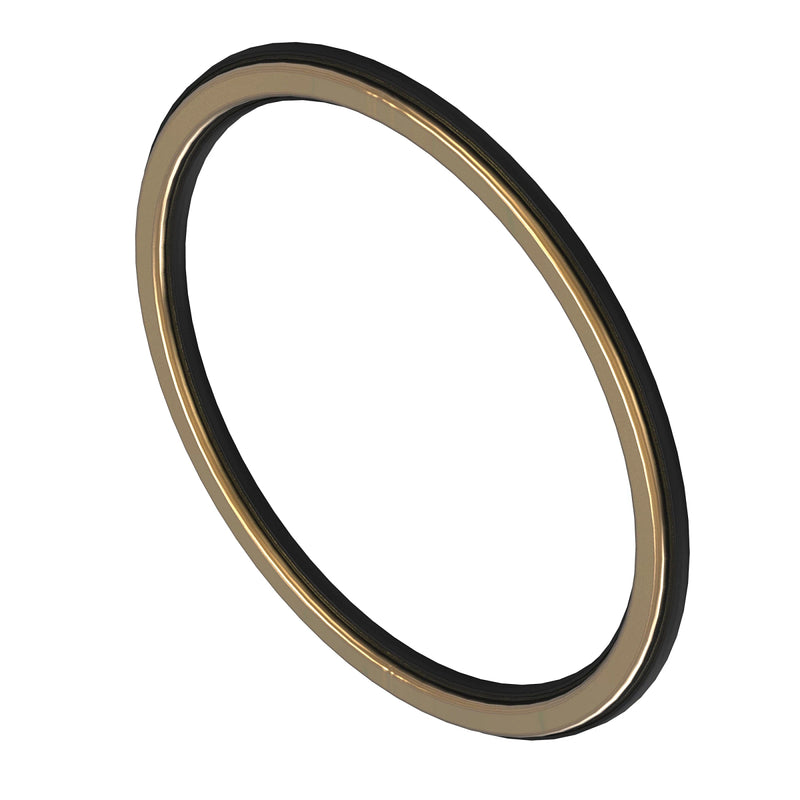

John Deere Planetary Brake Piston - R101214

John Deere Planetary Brake Piston - R101214 is an OEM hydraulic piston designed for planetary brake assemblies used in John Deere equipment. This piston acts within the planetary gear system to facilitate brake engagement and release, contributing to reliable braking performance in heavy-duty applications.

Overview

• Manufacturer: John Deere
• Part: Planetary Brake Piston
• OEM Part Number: R101214
• Function: Actuates hydraulic braking within planetary gear systems
• Typical use: Planetary brake assemblies in heavy equipment and agricultural machinery

Key Features

• Part Number: R101214
• Type of machine suitable for: John Deere equipment that employs planetary brake systems in drivetrain assemblies
• Installation tips:
  • Inspect bore for wear or damage; replace if necessary to maintain proper sealing
  • Use OEM seals and gaskets; replace during piston installation
  • Lubricate mating surfaces lightly and align piston correctly with hydraulic bore
  • Reassemble with clean fittings; bleed hydraulic circuit to remove air
  • Verify no leaks and test brake function per John Deere service guidelines

Compatibility

• Suitable machine models: John Deere equipment that uses planetary brake pistons within planetary gear braking assemblies (specific model list not provided in the data)
• Alternative part numbers: Not listed in the provided data; R101214 is the identified OEM piston for this application
