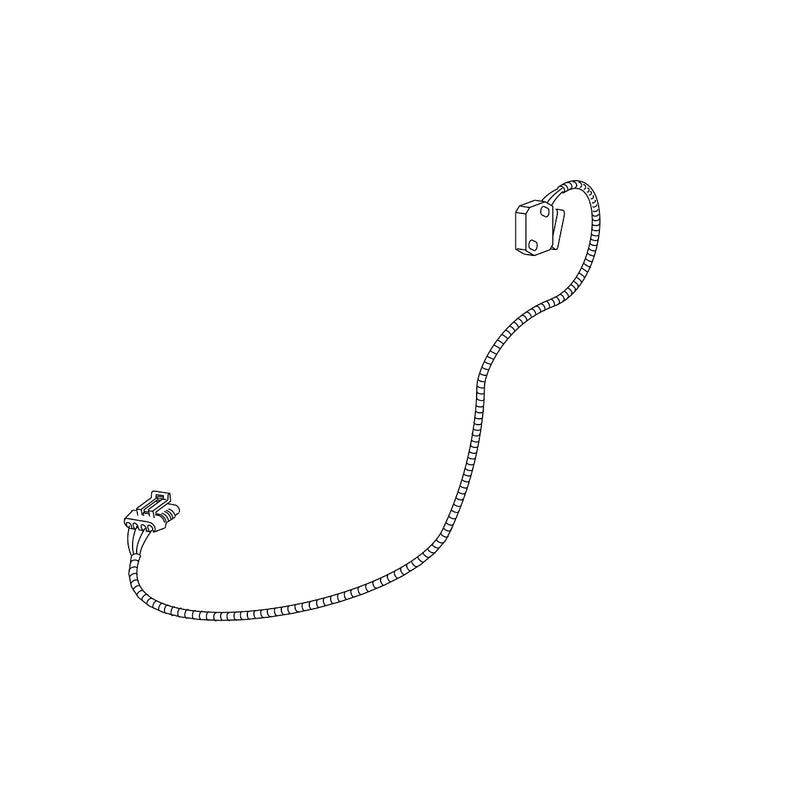

John Deere Park On/Off Switch Wiring Harness - AL113657

Overview

• Manufacturer: John Deere
• Product: Park On/Off Switch Wiring Harness
• Purpose: Enables reliable electrical interlock and signal routing by connecting the park on/off switch to the tractor’s wiring circuit, supporting parking lock functionality and related safety circuits across compatible Deere models.

Key Features

• Part Number: AL113657.
• Type of machine suitable for: Documented compatibility with John Deere 6000/6000SE series tractors and select models including 6100, 6200, 6300, 6400, 6506, 6600, 6800, 6900, as well as the 6010/6010SE, 6110, 6210, 6310, 6410, 6610, 6810, and 6910 series.
• Installation tips: For best results, disconnect the battery before installation, verify connector compatibility with the existing harness, route the wiring away from heat sources and moving parts, secure using appropriate ties or clamps, and test the park on/off function with the ignition off after a proper connection. The harness is designed for straightforward installation in supported Deere platforms.

Compatibility

• Suitable machine models: John Deere 6000/6000SE series tractors and select models from the 6100, 6200, 6300, 6400, 6506, 6600, 6800, and 6900 lines; plus 6010/6010SE, 6110, 6210, 6310, 6410, 6610, 6810, and 6910 series, as documented by dealers and parts distributors.
• Alternative part numbers: No widely listed alternatives; verify with your local John Deere parts catalog or dealer for region-specific cross-references.
