John Deere's 1500 Series TerrainCut™ Front Rotary Mowers are built to provide a a high quality finish when cutting thick grass at high speeds.
Excellent traction and staying power
0-12 mph
60 litre fuel tank enables up to 10 hours of non-stop mowing
Quickly adjust between 2.5 - 15.2 cm (1 - 6 in)

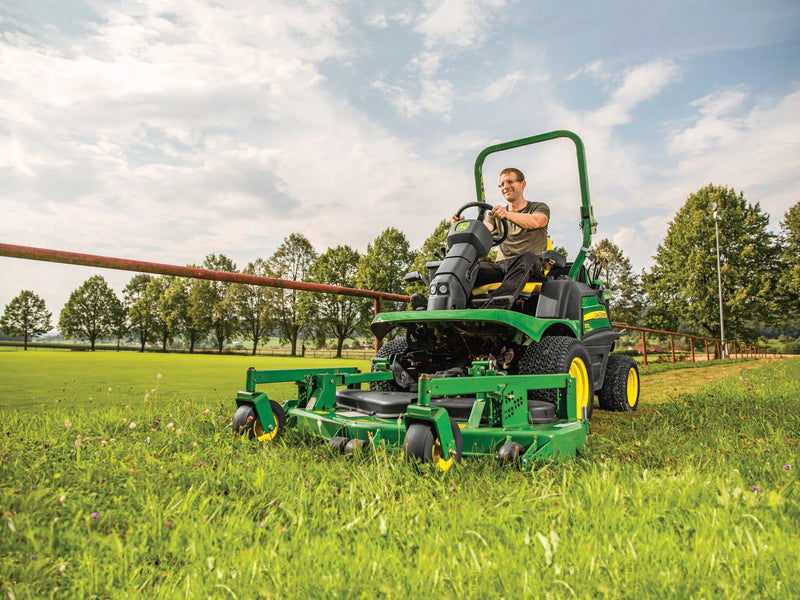

The John Deere 1570 TerrainCut™ Front Rotary Mower is a powerful commercial-grade front mower designed for professional turf maintenance across large and demanding areas. Built for reliability, performance and operator comfort, this diesel-powered mower is widely used by municipalities, contractors, golf courses and estate managers who require high productivity and consistent cut quality.
Part of John Deere’s 1500 Series TerrainCut™ range, the 1570 combines a high-torque diesel engine, hydrostatic four-wheel drive and heavy-duty mower decks to deliver exceptional cutting performance in challenging terrain and varied mowing conditions. Its front-mounted deck design provides excellent visibility of the cutting area, allowing operators to trim precisely around obstacles such as trees, bunkers, benches and landscaping features.
The mower is powered by a Yanmar 3-cylinder diesel engine producing 27.5 kW (37.4 hp), providing strong torque and reliable performance even in dense grass or tough conditions. The engine features direct fuel injection for efficient combustion, improved fuel economy and dependable starting.
A hydrostatic transmission with full-time 4WD capability ensures smooth power delivery and excellent traction across slopes, wet ground and uneven terrain. This system allows operators to maintain consistent mowing speed while easily adjusting direction and travel speed using foot pedals.
The 1570 TerrainCut is compatible with John Deere’s heavy-duty 7-Iron PRO cutting decks, available in 60 in. (152 cm) or 72 in. (183 cm) widths. These decks are constructed from thick stamped steel and reinforced for durability, providing a long service life even under heavy commercial use.
The deck design includes a smooth underside to minimise grass build-up and reinforced spindle pockets for improved structural strength.
With a blade tip speed of approximately 18,000 feet per minute (5,486 m/min), the mower delivers more blade strikes per inch of grass, producing a clean, consistent finish even at higher ground speeds.
Cutting height can be adjusted from 1 to 6 inches (2.5–15.2 cm) in small increments, allowing operators to tailor the mower to different turf types and mowing conditions.
Heavy-duty construction includes:
Reinforced ductile cast-iron spindle housings
Anti-scalp rollers to protect turf on uneven ground
Trim-edge bumper to reduce deck damage around obstacles
Heavy steel deck construction with perimeter reinforcement bars
These features help the mower withstand intensive daily use in commercial environments.
The front-mounted deck configuration provides clear sightlines to the cutting area, allowing operators to mow closer to edges, fences and landscape features with improved accuracy compared to mid-mount mowers.
The John Deere 1570 TerrainCut Front Mower is designed for professional users managing large turf areas, including:
Municipal parks and public spaces
Sports grounds and recreation fields
Golf courses and resort landscapes
Roadside and roadside verge maintenance
Commercial landscaping and groundskeeping
Estate and campus maintenance
Its combination of high productivity, durability and cutting precision makes it well suited for both routine maintenance and tougher rough-cut applications.
Product Type: Commercial Front Rotary Mower
Model: John Deere 1570 TerrainCut
Engine Manufacturer / Model: Yanmar 3TNV88C
Engine Type: Liquid-cooled, 3-cylinder diesel
Engine Power: 37.4 hp (27.5 kW) at 3000 rpm
Engine Displacement: 1.64 L (100.2 cu in.)
Fuel Tank Capacity: 60.6 L (16 US gal)
Transmission: Hydrostatic with full-time 4WD
Travel Speed: 0–12 mph (0–19.3 km/h)
Deck Options: 60 in. or 72 in. 7-Iron PRO decks
Blade Tip Speed: 18,000 fpm (5,486 m/min)
Cutting Height Range: 1–6 in. (2.5–15.2 cm)
Drive Wheels: 23 × 10.5-12
Caster Wheels: 11 × 4-5 flat-free
Electrical System: 12-V with alternator charging
Warranty: Typically 24 months depending on market
The John Deere 1570 TerrainCut is built to deliver professional mowing performance in demanding environments. Its powerful diesel engine, hydrostatic 4WD drivetrain and heavy-duty 7-Iron PRO decks provide exceptional durability and productivity. The front-mount design improves visibility and manoeuvrability, enabling operators to achieve precise trimming around obstacles while maintaining high mowing efficiency.
For contractors, municipalities and professional grounds managers who require reliable performance, superior cut quality and long-term durability, the 1570 TerrainCut Front Mower is a proven solution capable of handling large-scale turf maintenance with ease.
Standard features of the 1500 Series Front Rotary Mowers are:
| 1550 | 1570 | 1580 | |
|---|---|---|---|
| Engine Type | Liquid Cooled Three Cylinder Diesel | ||
| Rated Engine, kW (hp) | 27.5 kW (37.4 hp) at 3000 rpm | ||
| Forward Speed | 0 - 19.3 km/h (12 mph) | ||
| Drive | Full-time 4WD drivetrain | ||
| Cutting Heights | 2.54-15.24 cm (1 - 6 in) |
